物联网之设备数据存储及大屏展示（三）

前两篇文章介绍了设备数据采集和 MQTT 上报，本文将介绍如何存储这些数据并进行可视化展示。

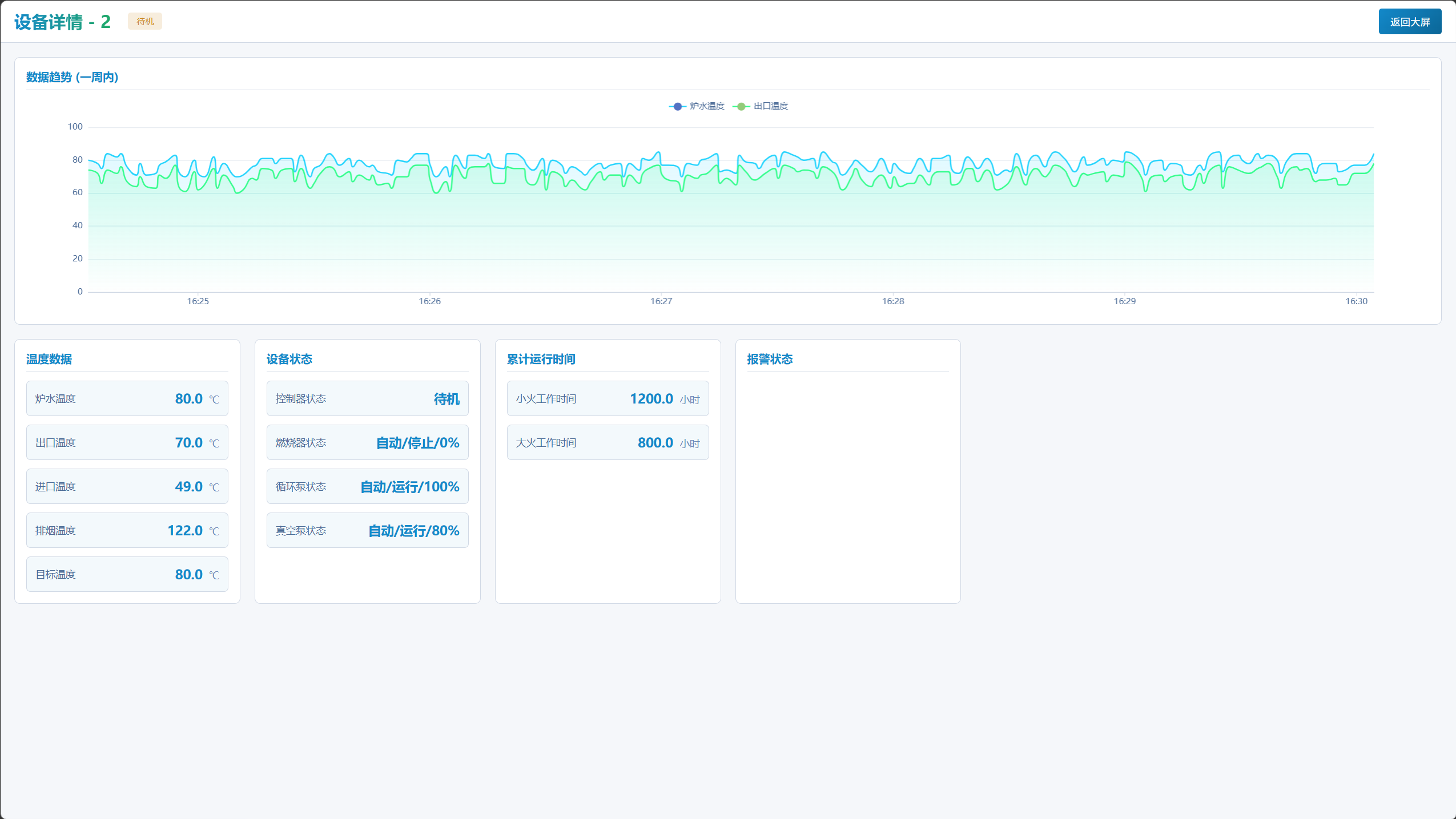

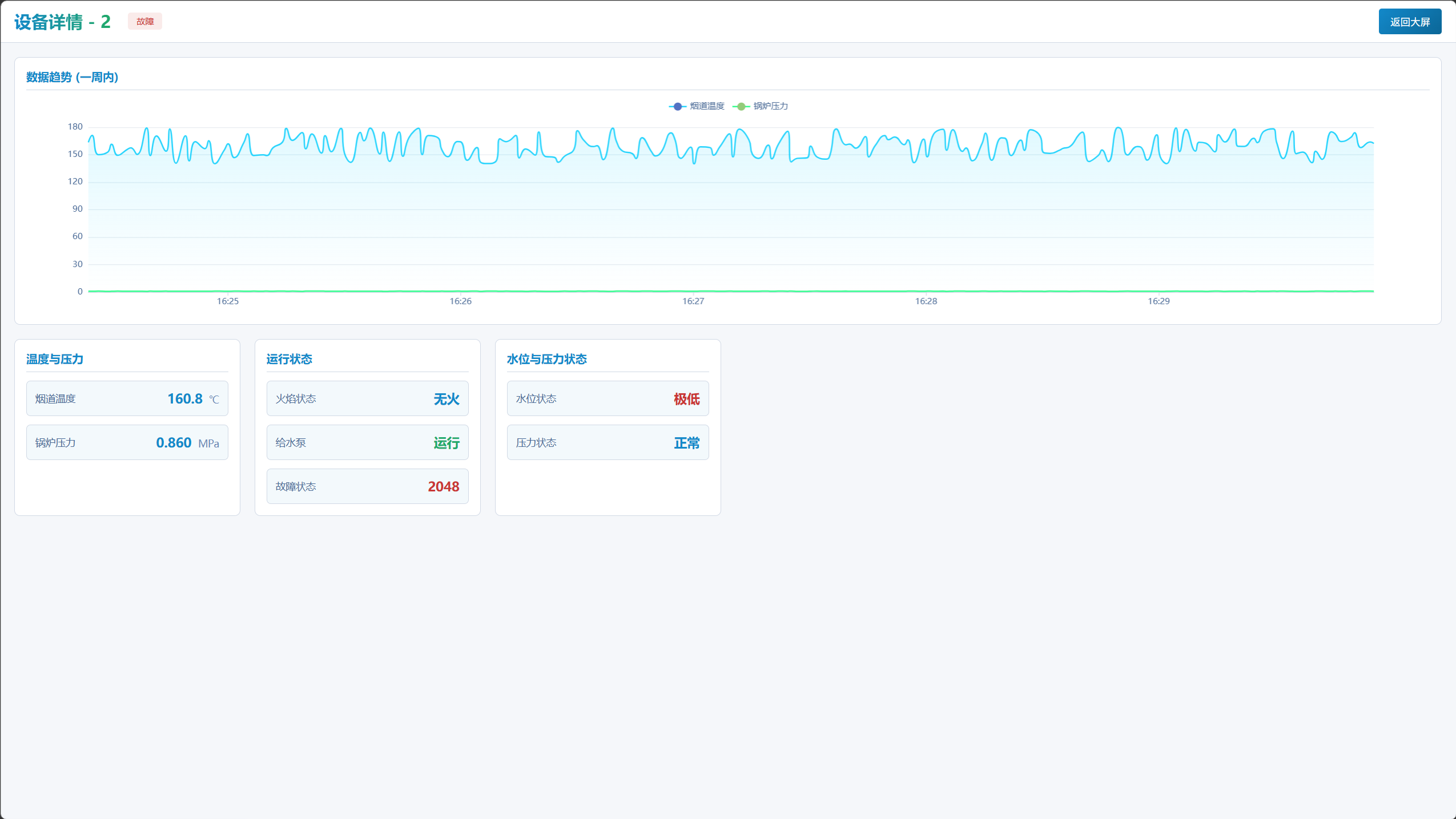

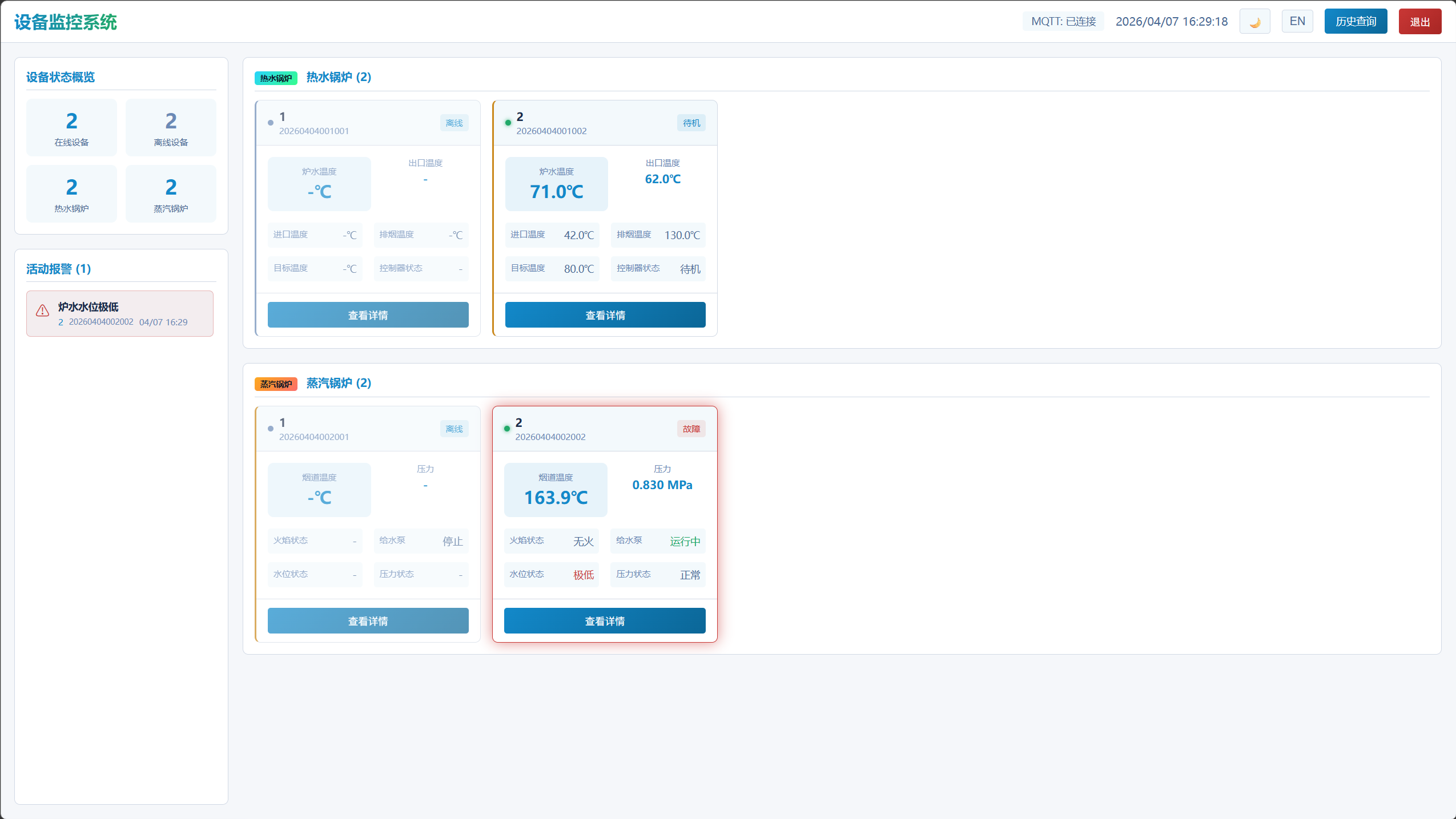

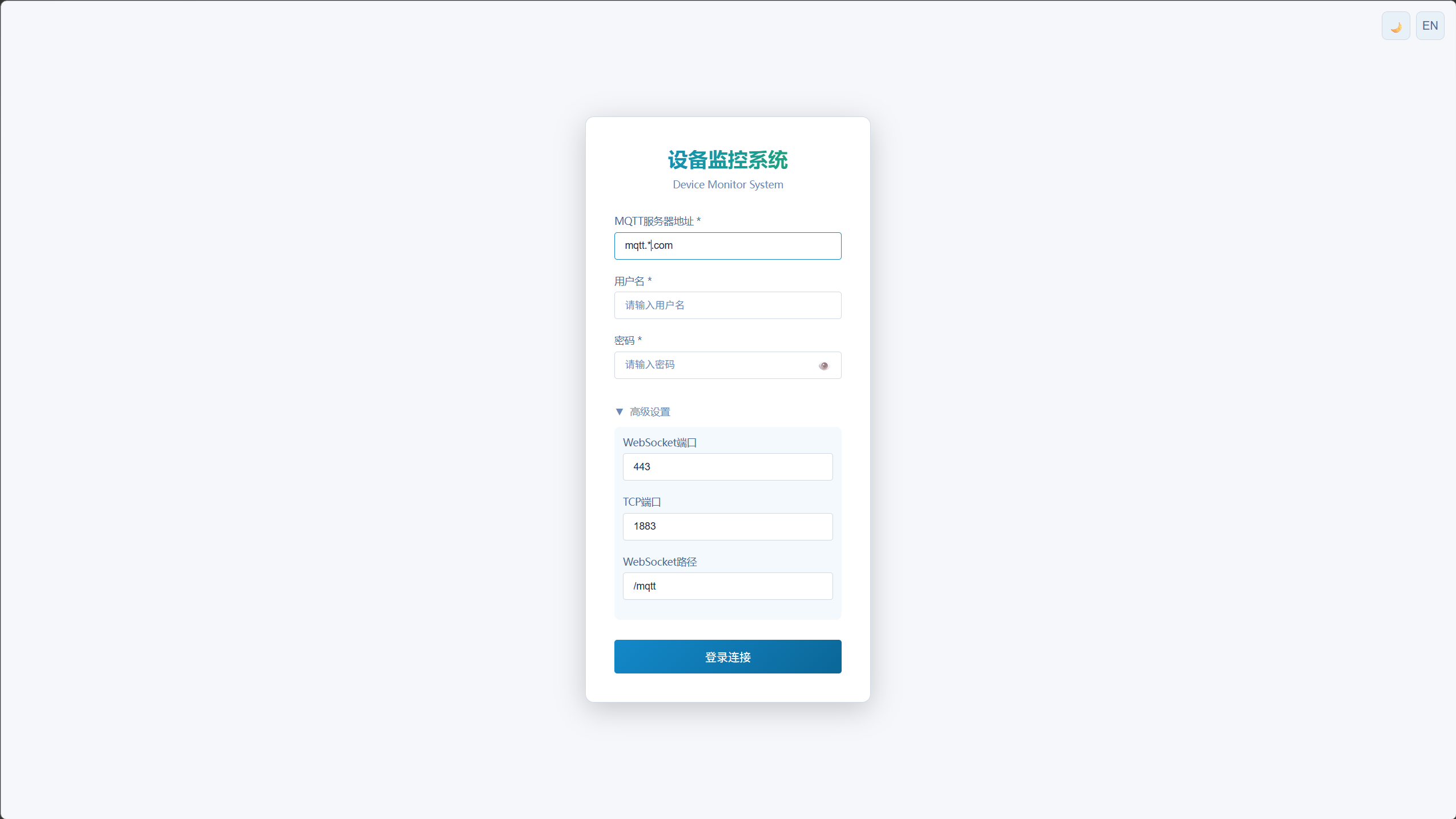

图示

系统架构

┌─────────────────┐
│   设备终端      │
│ (工业控制器)    │
│  RS485/MODBUS   │
└────────┬────────┘
         │ MQTT Publish
         ▼
┌─────────────────┐
│   EMQX Server   │  ← MQTT Broker
│   (MQTT服务器)  │
└────────┬────────┘
         │
    ┌────┴────┐
    ▼         ▼
┌───────┐ ┌───────┐
│NestJS │ │ Vue3  │
│ 服务  │ │ Web   │
└───┬───┘ └───────┘
    │
    ▼
┌───────────┐
│PostgreSQL │
│   数据库   │
└───────────┘

技术选型

组件	技术方案	说明
MQTT Broker	EMQX	高性能 MQTT 消息服务器
后端服务	NestJS + TypeScript	企业级 Node.js 框架
数据库	PostgreSQL	支持 JSONB 类型，适合大规模数据
前端框架	Vue3 + TypeScript + Pinia	SPA 单页应用，响应式状态管理
构建工具	Turborepo + pnpm	Monorepo 架构，统一构建管理

数据库设计

设备表 (devices)

存储设备基础信息。

CREATE TABLE devices (
  id VARCHAR(50) PRIMARY KEY,              -- 设备ID
  name VARCHAR(100) NOT NULL,              -- 设备名称
  device_type VARCHAR(30) NOT NULL,        -- 设备类型
  mac VARCHAR(20),                         -- 设备MAC地址
  is_online BOOLEAN DEFAULT false,         -- 在线状态
  last_seen_at TIMESTAMP,                  -- 最后通信时间
  created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);

实时数据表 (realtime_data)

存储设备最新数据，每个设备一条记录。

CREATE TABLE realtime_data (
  id SERIAL PRIMARY KEY,
  device_id VARCHAR(50) NOT NULL,          -- 设备ID (外键)
  device_type VARCHAR(30),                 -- 设备类型
  mac VARCHAR(20),                         -- 设备MAC地址
  r_data JSONB,                            -- 原始采集数据
  data JSONB NOT NULL,                     -- 解析后的标准化数据
  timestamp TIMESTAMP NOT NULL,            -- 数据时间戳
  updated_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
  FOREIGN KEY (device_id) REFERENCES devices(id)
);

CREATE UNIQUE INDEX idx_realtime_device ON realtime_data(device_id);

历史数据表 (history_data)

存储设备历史数据，用于趋势分析。

CREATE TABLE history_data (
  id SERIAL PRIMARY KEY,
  device_id VARCHAR(50) NOT NULL,
  device_type VARCHAR(30),
  mac VARCHAR(20),
  r_data JSONB,
  data JSONB NOT NULL,
  timestamp TIMESTAMP NOT NULL,
  created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
  FOREIGN KEY (device_id) REFERENCES devices(id)
);

CREATE INDEX idx_history_device ON history_data(device_id);
CREATE INDEX idx_history_timestamp ON history_data(timestamp);

告警记录表 (alarm_records)

存储设备告警信息。

CREATE TABLE alarm_records (
  id SERIAL PRIMARY KEY,
  device_id VARCHAR(50) NOT NULL,
  alarm_code VARCHAR(50) NOT NULL,         -- 告警代码
  alarm_name VARCHAR(200) NOT NULL,        -- 告警名称
  alarm_time TIMESTAMP NOT NULL,           -- 告警时间
  recover_time TIMESTAMP,                  -- 恢复时间
  status VARCHAR(20) NOT NULL,             -- active / recovered
  FOREIGN KEY (device_id) REFERENCES devices(id)
);

CREATE INDEX idx_alarm_device ON alarm_records(device_id);
CREATE INDEX idx_alarm_status ON alarm_records(status);

TypeORM 实体定义

设备实体

// apps/server/src/common/entities/device.entity.ts
import { Entity, PrimaryColumn, Column, CreateDateColumn } from 'typeorm';

@Entity('devices')
export class Device {
  @PrimaryColumn({ length: 50 })
  id: string;

  @Column({ length: 100 })
  name: string;

  @Column({ name: 'device_type', length: 30 })
  deviceType: string;

  @Column({ length: 20, nullable: true })
  mac: string;

  @Column({ name: 'is_online', default: false })
  isOnline: boolean;

  @Column({ name: 'last_seen_at', type: 'timestamp', nullable: true })
  lastSeenAt: Date;

  @CreateDateColumn({ name: 'created_at' })
  createdAt: Date;
}

实时数据实体

// apps/server/src/common/entities/realtime-data.entity.ts
import { Entity, PrimaryGeneratedColumn, Column, ManyToOne, JoinColumn } from 'typeorm';
import { Device } from './device.entity';

@Entity('realtime_data')
export class RealtimeData {
  @PrimaryGeneratedColumn()
  id: number;

  @Column({ name: 'device_id', length: 50 })
  deviceId: string;

  @Column({ name: 'device_type', length: 30, nullable: true })
  deviceType: string;

  @Column({ length: 20, nullable: true })
  mac: string;

  @Column({ name: 'r_data', type: 'jsonb', nullable: true })
  rData: any[];

  @Column({ type: 'jsonb' })
  data: Record<string, any>;

  @Column({ type: 'timestamp' })
  timestamp: Date;

  @Column({ name: 'updated_at', type: 'timestamp', default: () => 'CURRENT_TIMESTAMP' })
  updatedAt: Date;

  @ManyToOne(() => Device)
  @JoinColumn({ name: 'device_id' })
  device: Device;
}

API 接口设计

设备列表

GET /api/devices
Response: { devices: Device[] }

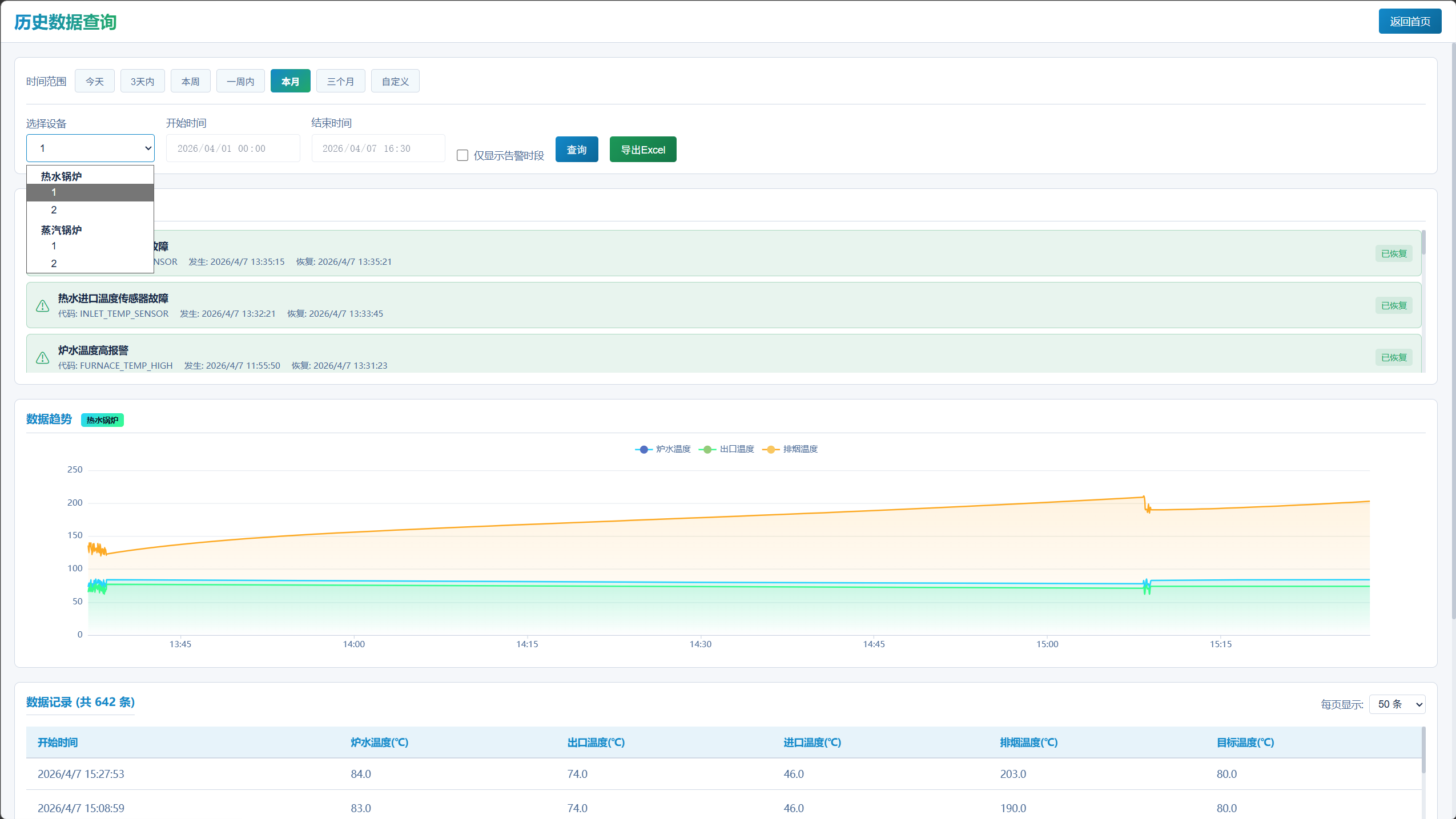

历史数据查询

GET /api/data/history/:deviceId?start=2026-04-01&end=2026-04-05&page=1&limit=50
Response: { data: HistoryData[], total: number, page: number, limit: number }

实时数据查询

GET /api/data/realtime/:deviceId
Response: { data: RealtimeData }

告警记录查询

GET /api/alarm/records?deviceId=xxx&start=2026-04-01&end=2026-04-05
Response: { data: AlarmRecord[] }

数据导出

GET /api/data/export/:deviceId?start=2026-04-01&end=2026-04-05
Response: application/vnd.openxmlformats-officedocument.spreadsheetml.sheet

NestJS 模块结构

apps/server/src/
├── main.ts
├── app.module.ts
├── common/
│   ├── entities/           # TypeORM 实体
│   │   ├── device.entity.ts
│   │   ├── realtime-data.entity.ts
│   │   ├── history-data.entity.ts
│   │   └── alarm-record.entity.ts
│   └── adapters/           # 设备适配器
│       └── deviceAdapter.ts
└── modules/
    ├── mqtt/               # MQTT 消息处理
    │   ├── mqtt.module.ts
    │   └── mqtt.service.ts
    ├── devices/            # 设备管理
    ├── data/               # 数据查询
    └── alarm/              # 告警管理

MQTT 消息处理

消息订阅

// apps/server/src/modules/mqtt/mqtt.service.ts
private subscribeTopics() {
  // 订阅格式: device/{deviceType}/{deviceName}
  this.client.subscribe('device/+/+', (err) => {
    if (err) {
      this.logger.error('Failed to subscribe: ' + err.message);
    } else {
      this.logger.log('✅ Subscribed to device/+/+');
    }
  });
}

Topic 解析

private parseTopic(topic: string): { deviceType: string; deviceName: string } | null {
  const parts = topic.split('/');
  if (parts.length === 3 && parts[0] === 'device') {
    return { deviceType: parts[1], deviceName: parts[2] };
  }
  return null;
}

数据存储

private async handleRealtimeMessage(
  deviceId: string,
  deviceType: string,
  data: Record<string, any>,
  timestamp: Date,
) {
  const queryRunner = this.dataSource.createQueryRunner();
  await queryRunner.connect();
  await queryRunner.startTransaction();

  try {
    // 更新实时数据 (upsert)
    await queryRunner.manager
      .createQueryBuilder()
      .insert()
      .into(RealtimeData)
      .values({ deviceId, deviceType, data, timestamp })
      .orUpdate(['data', 'timestamp'], ['deviceId'])
      .execute();

    // 插入历史数据
    await queryRunner.manager.save(HistoryData, {
      deviceId, deviceType, data, timestamp
    });

    await queryRunner.commitTransaction();
  } catch (error) {
    await queryRunner.rollbackTransaction();
    throw error;
  } finally {
    await queryRunner.release();
  }
}

前端架构

状态管理 (Pinia)

// apps/web/src/stores/device.ts
import { defineStore } from 'pinia';
import type { Device, RealtimeData } from '@device-monitor/types';

export const useDeviceStore = defineStore('device', {
  state: () => ({
    devices: [] as Device[],
    realtimeData: {} as Record<string, RealtimeData>,
  }),

  getters: {
    onlineDevices: (state) => state.devices.filter(d => d.isOnline),
    offlineDevices: (state) => state.devices.filter(d => !d.isOnline),
  },

  actions: {
    updateRealtimeData(deviceId: string, data: RealtimeData) {
      this.realtimeData[deviceId] = data;
    },
  },
});

MQTT 客户端服务

// apps/web/src/services/mqtt.ts
import mqtt, { MqttClient } from 'mqtt';

export class MqttService {
  private client: MqttClient;

  connect(url: string) {
    this.client = mqtt.connect(url, {
      clientId: `web_${Date.now()}`,
    });

    this.client.on('connect', () => {
      this.client.subscribe('device/+/+');
    });

    this.client.on('message', (topic, message) => {
      const data = JSON.parse(message.toString());
      // 更新状态
    });
  }
}

设备卡片组件

<!-- apps/web/src/components/DeviceCard.vue -->
<template>
  <div class="device-card" :class="{ offline: !device.isOnline }">
    <div class="device-header">
      <span class="online-indicator" :class="device.isOnline ? 'online' : 'offline'"></span>
      <h3>{{ device.name }}</h3>
    </div>
    <div class="device-content">
      <!-- 设备数据展示 -->
    </div>
  </div>
</template>

设备离线检测

通过定时任务检测设备在线状态。

// apps/server/src/modules/mqtt/mqtt.service.ts
import { Interval } from '@nestjs/schedule';

export class MqttService {
  // 每 30 秒检查一次
  @Interval(30000)
  async checkDeviceOfflineStatus() {
    const timeoutDate = new Date(Date.now() - 60 * 1000); // 60秒超时

    const offlineDevices = await this.deviceRepo
      .createQueryBuilder('device')
      .where('device.isOnline = :isOnline', { isOnline: true })
      .andWhere('device.lastSeenAt < :timeoutDate', { timeoutDate })
      .getMany();

    if (offlineDevices.length > 0) {
      const ids = offlineDevices.map(d => d.id);
      await this.deviceRepo.update(ids, { isOnline: false });
    }
  }
}

数据导出功能

使用 exceljs 库实现 Excel 导出。

// apps/server/src/modules/data/data.service.ts
import * as ExcelJS from 'exceljs';

async exportToExcel(deviceId: string, start: Date, end: Date): Promise<Buffer> {
  const historyData = await this.historyRepo.find({
    where: { deviceId, timestamp: Between(start, end) },
    order: { timestamp: 'ASC' },
  });

  const workbook = new ExcelJS.Workbook();
  const worksheet = workbook.addWorksheet('历史数据');

  // 添加表头
  worksheet.columns = [
    { header: '时间', key: 'timestamp' },
    { header: '温度', key: 'temperature' },
    { header: '压力', key: 'pressure' },
  ];

  // 添加数据行
  historyData.forEach(item => {
    worksheet.addRow({
      timestamp: item.timestamp,
      temperature: item.data.temperature,
      pressure: item.data.pressure,
    });
  });

  return workbook.xlsx.writeBuffer() as Promise<Buffer>;
}

小结

本文介绍了：

1. 数据库表结构设计
2. TypeORM 实体定义
3. RESTful API 接口设计
4. MQTT 消息处理与数据存储
5. 前端状态管理与组件设计
6. 设备离线检测机制
7. 数据导出功能

下一篇文章将介绍如何扩展支持新的设备类型。
